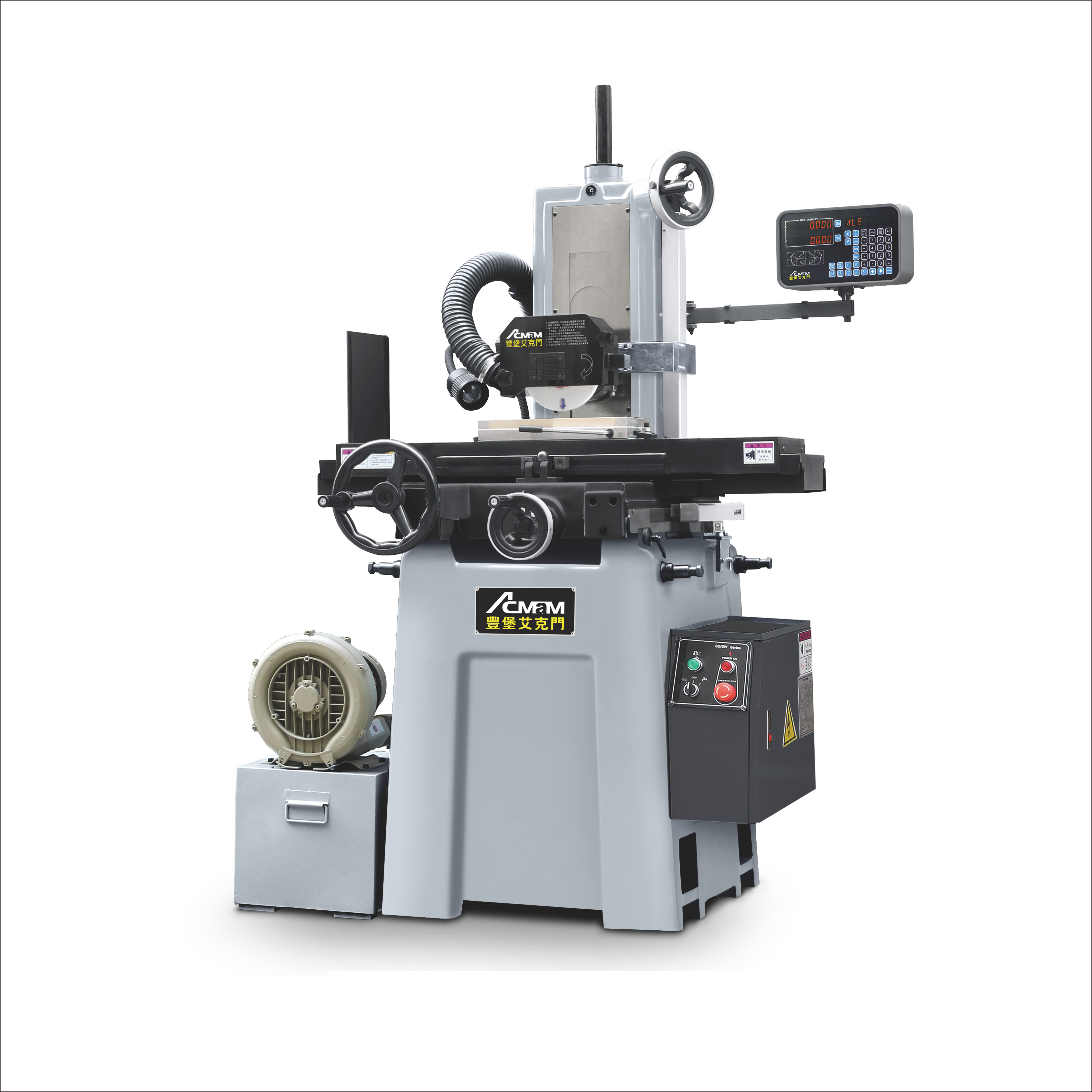

FGM-618G
产品介绍:


  • 产品参数
☆Z轴增加丝杠螺母固定好,稳定性好确保精度
☆Z axis to increase screw nut fixed good, good stability to ensure accuracy
☆4条经络骨结构刚性好,不易变形
☆The four meridians are rigid and do not deform easily
☆吸尘 aspiration
科学化的吸尘设计,吸尘口倾斜度为45度,并且可上下调整,确保最佳的吸尘能力
Scientific dust absorption design, the inclined level of the suction mouth is 45 degrees, and can be adjusted up and down to ensure the best dust absorption capacity
☆防尘 dust
直接铸件防尘,严密的防尘设计是其他易变形塑胶制品无法比凝的。防尘的优劣直接关系到机床的精度和机床的寿命
Direct casting dust - proof, strict dust - proof design is other flexible plastic products can not be more than coagulation. The quality of dustproof is directly related to the precision of the machine tool and the life of the machine tool
☆铸件 The casting
壁厚15mm以上重达850公斤(较其他同型磨床增加了30%)的优良铸件,大大的提高了机床的稳定性,确保机床的整体刚性
Excellent casting with wall thickness of 15mm or more and weight of 850 kg (30% more than other similar grinding machines) greatly improves the stability of the machine tool and ensures the overall rigidity of the machine tool
规格(Specification) FGM-618G
工作台尺寸(Worktable) 150*457mm(6*18")
最大研磨长度(Maximum grinding length) 475mm(18-3/4")
最大研磨宽度(Maximum grinding width) 160mm(6-1/3")
主轴至工作台面距离(Spindle to table distance) 350-400mm(13.8*15.7")定制最高可达430mm(350-400mm(13.8*15.7")customization up to430mm)
左右手动进给(Left and right manual feed) 485mm(19")
前后手动进给(Manual feed forward and backward) 180mm(7")
前后手动每刻度进给(Manual  feed per tick) 0.02mm(0.001")
前后手动每转进给(Manual feed per revolution) 5mm(0.2")或3mm(0.1")(5mm(0.2")or3mm(0.1"))
升降手轮每刻度进给(The lifting handwheel feeds every tick) 0.005mm(0.0002")
升降手轮每转进给(Lift handwheel per feed) 1mm(0.05")
砂轮尺寸(直径*宽度*孔径)(Wheel size(diameter X width X aperture) 180*16*32mm(7*2/3*1-1/4")
主轴速度(Spindle speed) 60Hz/50Hz-3600/3000rpm
主轴马达(Spindle motor) 1.5/2Hp
净重(net weight) 850kgs
装箱尺寸(Packing size) 1550*1150*1980mm(55*45*78")
